The NetWave 6000 is an innovative VDR device with a sufficient and uninterruptible power supply. Its network switch is designed with built-in time and space in mind, and provides scalability up to the largest watercraft. It also has a high degree of plug-and-play interconnection.
-
Complete project responsibility SVDR and VDR (replacement) installation at fixed cost
-
All IMO required certifications including Wheelmark, Russian Register, and China Class
-
Worldwide service-network along the major shipping routes
-
Free Easyfix kits to replace outdated SVDRs and VDRs at lowest cost
Netwave VDR Data Architecture
Compliant with MSC 333(90)

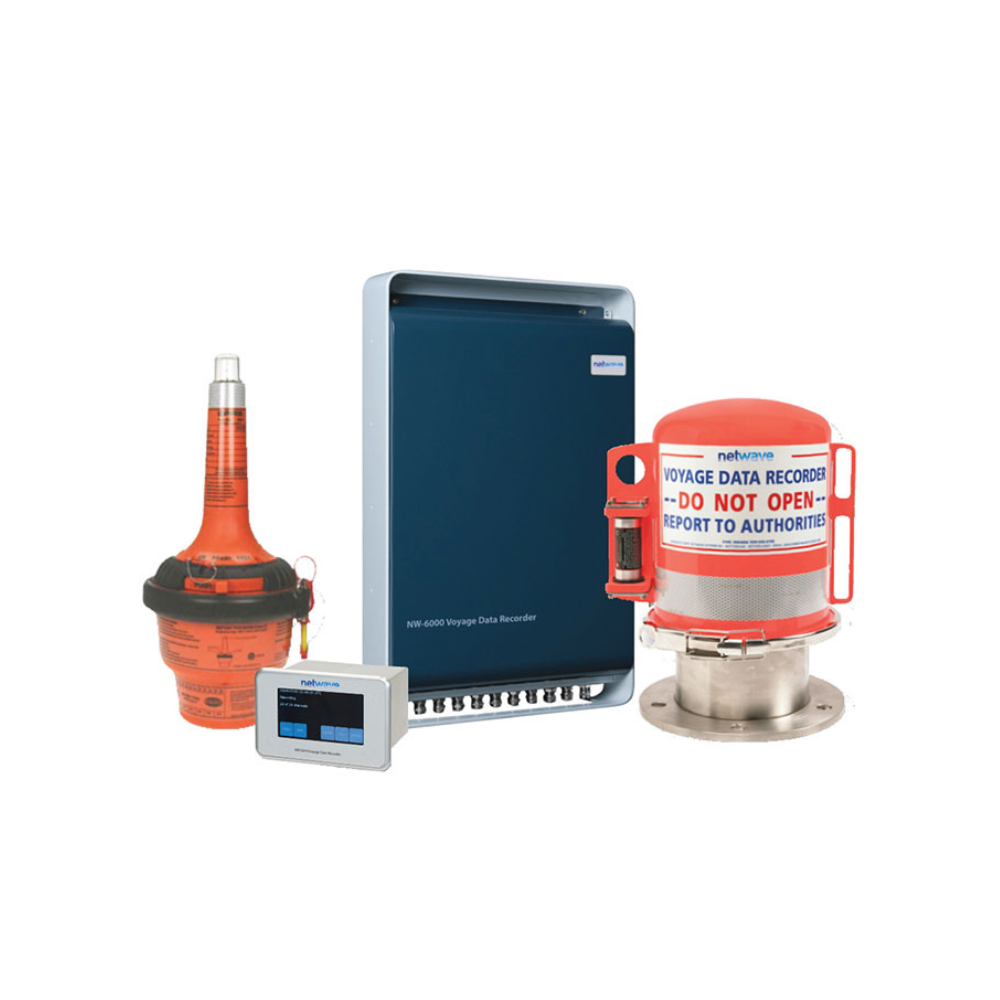

The Netwave NW-6000 VDR boasts a versatile, space-efficient design, adaptable for installation in a 19″ rack or bulkhead-mounted casing. Its compact form allows for easy integration within a navigation console or placement on any flat surface. Thanks to Power-Over-Ethernet (PoE) technology, the system significantly reduces the complexity of cabling, resulting in faster and more economical installations.
Unlike most VDR systems, the NW-6000’s architecture relies on a single Ethernet cable for both power and data transmission, cutting cabling costs by up to 50%. This makes it a cost-effective choice for both new builds and retrofitting older systems.

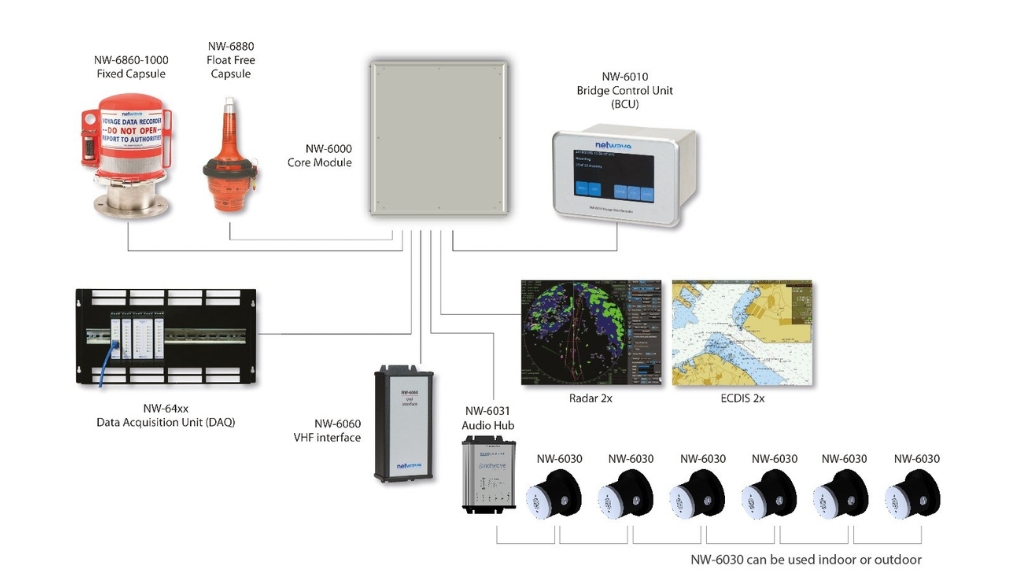

Core Components of the Netwave VDR System:
-
NW-6860-1000 Fixed Capsule: Durable, stainless steel housing that stores 48 hours of data with built-in autonomous operation via a single Ethernet connection.
-
NW-6880 Float-free Capsule: Partnered with Jotron for maximum reliability, ensuring secure recording even in emergency float-free scenarios.
-
NW-6010 Bridge Control Unit: User-friendly, touch-screen interface that provides instant access to VDR functions and diagnostics.
-
NW-6000 Core Module: Designed for scalability, this module serves as the central hub with 12 Ethernet ports, offering seamless plug-and-play connectivity.
-
NW-64xx Data Acquisition Unit: This DIN-rail mounted interface connects the core to multiple serial, digital, and analog adaptors, simplifying data acquisition across the ship.
-
NW-6020 PoE Microphones: Daisy-chainable microphones ensure compliance with MSC.333(90) by recording on separate channels, using a single cable connection.
Advanced Features:
-
Remote Monitoring: Real-time system diagnostics and performance data accessible from any remote location, offering secure, password-protected insights without crew interference.
-
Camera Monitoring & Live Replay: Optional integration with onboard camera systems enables video recording and instant playback, providing ship management with real-time visual data.
The Netwave NW-6000 is an innovative solution that not only reduces installation costs but also enhances the vessel’s operational transparency with tools for monitoring and improving performance.
For more product details, please contact please contact us through the tab below.
