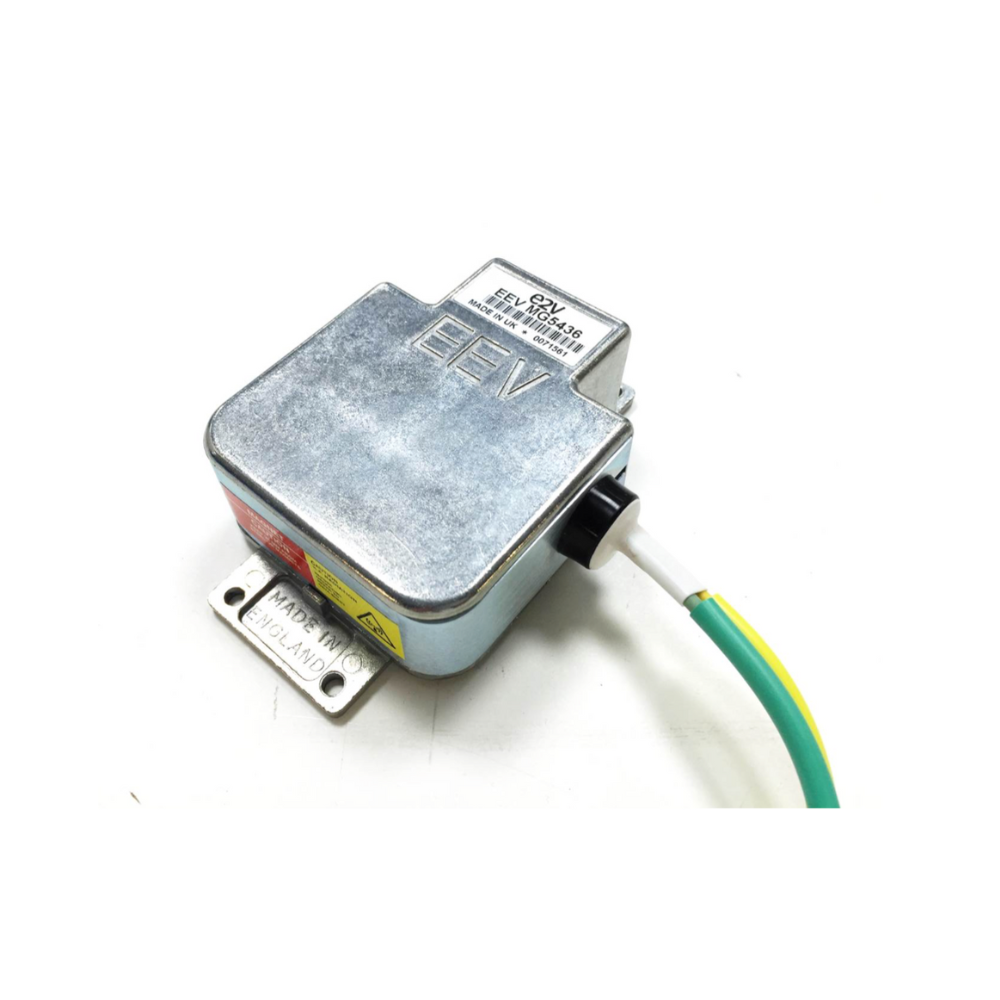

Magnetron MG5436

X-band magnetron

  • The operating frequency – 9410 ± 30 MHz

  • Coupler – IEC UBR100

  • Peak power 25 kW

  • The heating voltage is 6.3 V

  • The filament current is 0.5 A

  • Starting current 3.0 A max.

  • Cathode heating time 60 s

  • The maximum voltage of 8.6 kV

  • The maximum current of the anode is 10 A

  • Operation cycle 0.001

  • Pulse width 2.0 µs

  • Weight 0.7kg

Product Information
Description

The EEV MG5436 X-Band Magnetron is a compact, rugged, and lightweight fixed-frequency pulse magnetron, designed specifically for marine radar applications. Operating within the 9380 to 9440 MHz frequency range, it provides a 25 kW power output for reliable radar signal processing. Built using e2V technology, it ensures safety in handling and operation. With its robust design, it is ideal for the demanding conditions of marine environments, offering both durability and precision in radar performance.

Want To Know More?

For more product details, please contact please contact us through the tab below.
