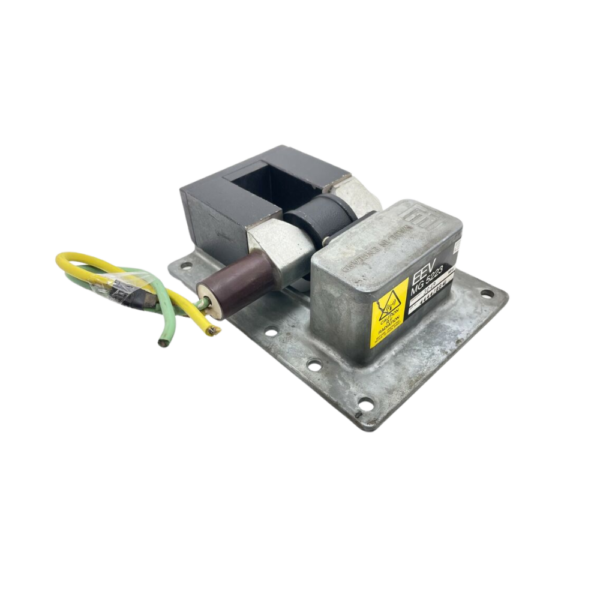

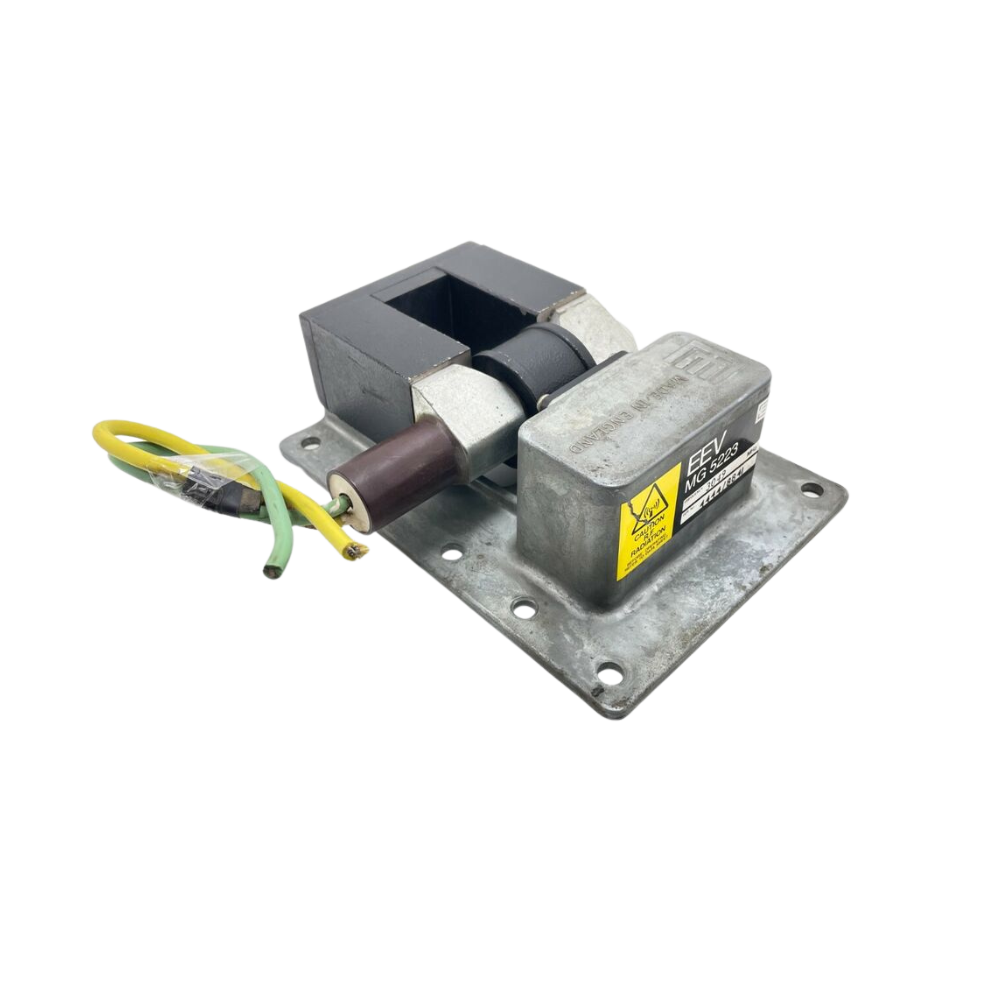

Magnetron MG5223

S-band magnetron

  • The operating frequency – 3050 ± 10 MHz

  • Peak power 30 kW

  • The heating voltage is 6.3 V

  • The filament current is 1.25 A

  • Starting current 6 A max.

  • Cathode heating time 180 s

  • The maximum voltage of 8.5 kV

  • The maximum current of the anode is 12 A

  • Operation cycle 0.001

  • Pulse width 1.2 µs

  • Weight 2.1kg

Product Information
Description

The EEV MG5223 S-Band Magnetron is a compact, robust magnetron designed for marine radar applications. It operates within the 3040 to 3060 MHz frequency range with a 30 kW power output, ensuring reliable performance. Built using e2V technology, it prioritizes safety by concealing high-voltage circuits and terminals and includes an emergency shutdown button. This magnetron is widely used in marine radar systems and requires natural or forced air cooling for optimal operation in demanding conditions.
