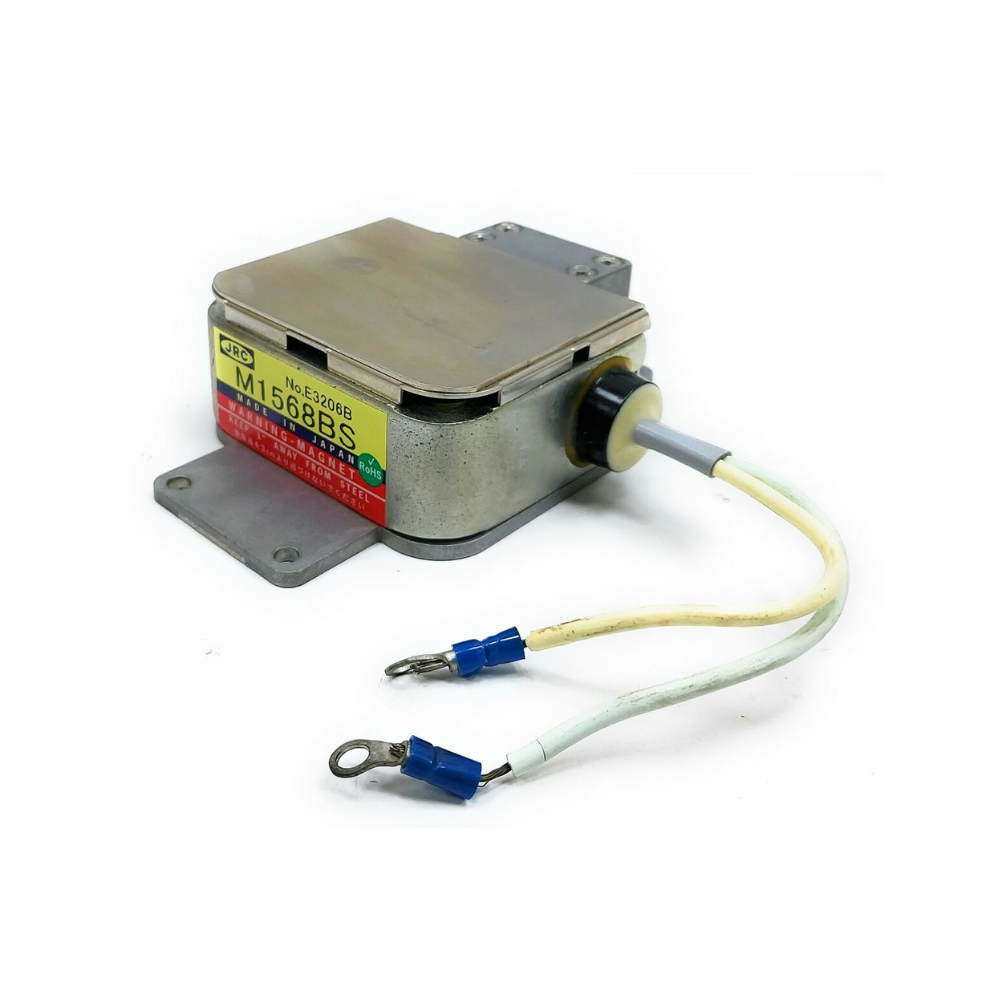

Product Information
Description
Specifications
| Items | Parameters |
| Frequency | 9380 to 9440 MHz (Fixed) |
| Output power (Peak) | 25 kW |
| Duty cycle / Pulse duration | 0.001 / 1.2 μsec |
| Anode voltage (Peak) | 8 kV |
| Anode current (Peak) | 8 A |
| Heater voltage | 6.3 V (@ Preheat) |
| Heater current | 0.52 A |
| RF output interface | Waveguide: WR90 RF flange: UG-135/U Equivalent |
| Power supply interface | Lead wire |
| Cooling | Air / Forced air |
| Weight | 0.7 kg |
