RADAR / MAGNETRON

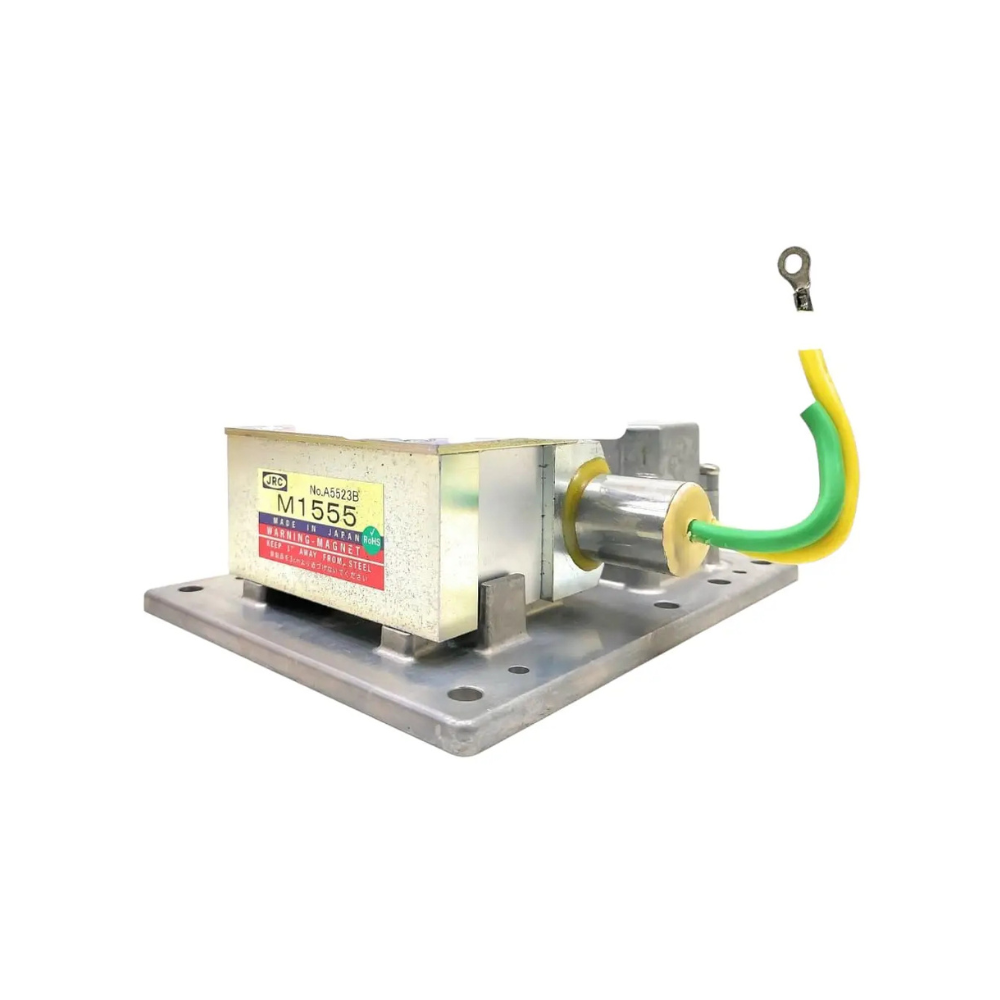

Magnetron M1555
S-band 30kW Magnetron, Advanced Spectrum Controlled – V9 Technology
- Frequency: 3040 to 3060 MHz (Fixed)
- Output power (Peak): 30kW
- Duty cycle / Pulse duration: 0.001 / 1.00 μsec
- Others: RoHS compliant
Product Information
Description
Specifications
| Items | Parameters |
| Frequency | 3040 to 3060 MHz (Fixed) |
| Output power (Peak) | 30 kW |
| Duty cycle / Pulse duration | 0.001 / 1.00 μsec |
| Anode voltage (Peak) | 8 kV |
| Anode current (Peak) | 8 A |
| Heater voltage | 6.3 V (@ Preheat) |
| Heater current | 1.3 A |
| RF output interface | Waveguide: WR284 |
| Power supply interface | Lead wire |
| Cooling | Air / Forced air |
| Weight | 1.7 kg |
