Solutions
This is to advise the requirements and solutions JRC offers for LRIT, including practical notes.
Long Range Identification and Tracking (LRIT) is a global monitoring system of the ship’s movements. Ships are required to fit a system that automatically transmits information, such as identity, position and the date and time of the position at time of transmission. Ships are required to have such a system installed on the first radio inspection day after 31 December 2008, according to MSC.202 (81).
The following ships (engaged on international voyages) are required to implement LRIT:
- All passenger ships, including high speed craft
- Cargo ships, including high speed craft of 300 gross tonnage and above
- Mobile offshore drilling units

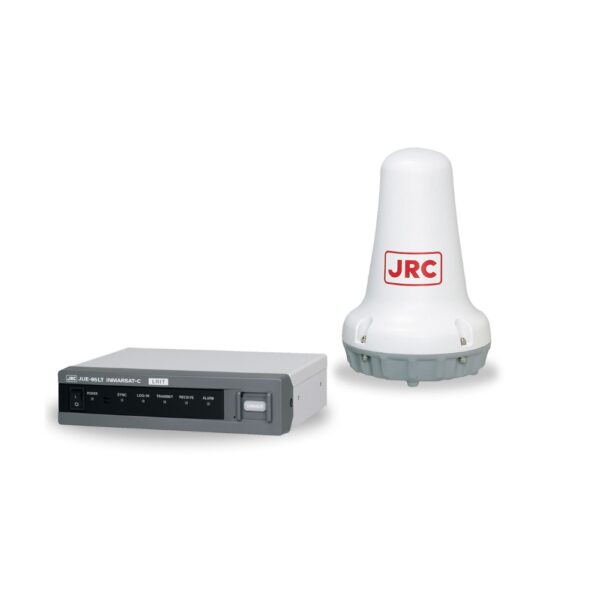

Even if your Inmarsat C terminal currently not requires LRIT operation, updating software is highly recommended in case of possible future usage.
LRIT Background
The Long-Range Identification and Tracking (LRIT) regulation will apply to the following ship types engaged on international voyages:
- All passenger ships including high speed craft,
- Cargo ships, including high speed craft of 300 gross tonnage and above, and
- Mobile offshore drilling units.
All vessels of 300 gross tonnage and above on international voyage will need to be compliant with LRIT regulations.
Those ships operating exclusively in coastal Sea Area A1 and fitted with an Automatic Identification System will be exempt, while ships operating in near-coastal Sea Area A2 not fitted with Inmarsat C GMDSS will be required to fit a compliant terminal. Ships operating in polar Sea Area A4 above 70 degrees latitude will require a non-Inmarsat terminal that operates in conjunction with a low-earth orbit Communication Service Provider (CSP) approved by the Flag in conjunction with its appointed Application Service Provider (ASP).
A phased approach to the implementation of the regulation will allow for compliance not later than the first radio survey after 31 December 2008 or in the case of ships operating in Sea Area A4 not later than the first radio survey after 1 July 2009.
The terminal must be capable of being configured to transmit the following minimum information set in an Automatic Position Report (APR):
- The identity of the ship
- The position of the ship, and
- The date and time of the position.
In addition, the terminal must be able to respond to polling for an on-demand position report and be able immediately to respond to instructions to modify the APR interval to a frequency of a maximum of one every 15 minutes. APR’s will be transmitted as a minimum 4 times per day to a National Data Centre (NDC), a Cooperative Data Centre (CDC), or a Regional Data Centre (RDC) nominated by the Flag (collectively “DC’s”).
For more info, visit lrit.com
For more product details, please contact please contact us through the tab below.
