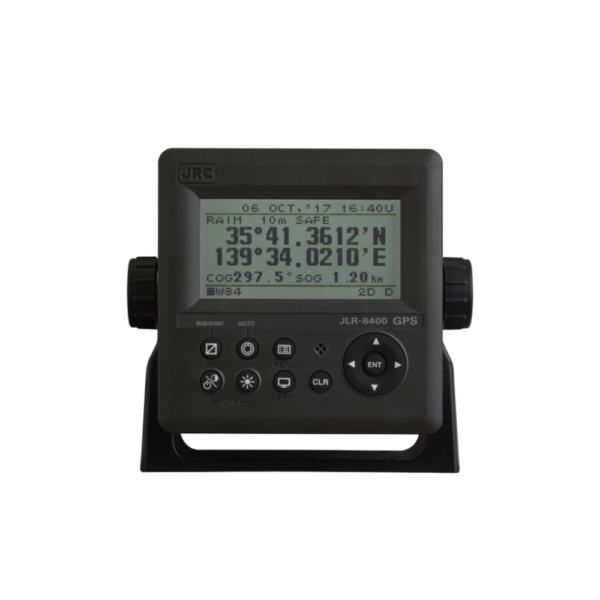

The JLR-8400 GPS navigator is compact, multi-GNSS compatible, and ensures precise positioning even in Arctic regions without SBAS or beacon. Its advanced sensor simultaneously receives GPS, GLONASS, QZSS, and BeiDou signals for accurate data and can further enhance positioning by receiving SBAS correction.
Designed for flexible installation, the JLR-8400 can be mounted almost anywhere using a desktop flush mount. Its base allows for easy installation on poles or brackets and features a slot for efficient cable management.
System
 |
—
Specifications
| Equipment Name | GPS Navigator | |
| Model | JLR-8600 | JLR-8400 |
| Standard | IEC 60945 Ed.4.0 ( 2002 ) IEC 61108-1 Ed.2.0 ( 2003 ) IEC 61162-1 Ed.5.0 ( 2016 ) IEC 61162-2 Ed.1.0 ( 1998 ) IEC 61162-450 Ed.1.0 ( 2011 ) IEC 62288 Ed.2.0 ( 2014 ) |
IEC 60945 Ed.4.0 ( 2002 ) IEC 61108-1 Ed.2.0 ( 2003 ) IEC 61162-1 Ed.5.0 ( 2016 ) IEC 62288 Ed.2.0 ( 2014 ) |
| Sensor | ||
| Model | JLR-4350 | |
| Positioning Satellite System | GPS, GLONASS, BeiDou, SBAS | |
| Accuracy | Satellite system | Positioning accuracy ( 2DRMS ) |
| GPS + GLONASS | 4M | |
| GPS + BeiDou | ||
| GPS + SBAS | ||
| GPS | 5m | |
| Maximum Number of Tracked Satellites | 22 satellites | |
| Sensitivity | -144 dBm for acquisation | |
| Time to First Fix | Typically 35 seconds ( cold start fix ) | |
| Typically 33 seconds ( warm start fix ) | ||
| Typically 4 seconds ( hot start fix ) | ||
| Position Update | Normally every 1 second | |
| Geodetic Satum | Selection among 48 geodetic datum ( default: WGS-84 ) | |
| JLR-8600/8400 specifications | ||
| Model | Display Unit: NWZ-1650 Processor Unit: NDC-4100 |
Display Unit: NWZ-4620 |
| Display | 6.5-inch TFT color LCD | 4.5-inch monochrome LCD |
| 640×480 dots ( VGA ) Brightness: 800 cd/m2> |
128×64 dots | |
| Backlight | 17 steps | White or orange |
| Memory | Waypoints: 10,000 points Event/Mark: 1,000 points Route: 100 routes Track: 2,000 points |
Waypoints: 1,000 points Event/MOB: include in waypoints Route: 20 routes Track: 2,000 points |
| Plot Function Scale | 0.2, 0.5, 1, 2, 5, 10, 20, 50, 100, 200, 300 NM | 0.125, 0.25, 0.5, 1, 2, 5, 10, 20, 50, 100 NM |
| Plot Interval | 1 to 60 min ( 1 sec ) or 0.01 to 99.99 NM ( 0.01 NM ) selectable | |
| Navigation Calculation | Grate circle or rhumb line selectable | |
| Screen Mode |
Navigation information screen, plotting screen, analogue screen, highway screen, satellite information screen, waypoint information screen, beacon text screen, navigation aid screen |
Navigation screen, PLOT screen, GPS information screen, beacon information screen, CDI screen, distance screen, speed screen, reception information screen, waypoint information screen |
| Alert |
Arrival, anchor, boundary, XTD, no position fix, speed, trip, HDOP, temperature, depth |
Arrival, anchor, XTD, no position fix, speed, trip, HDOP |
| Unit | Distance speed: NM, kn, km, km/h, mi, mi/h | |
| Buffer/Select Switch | Built-in | Option |
| Dual Power Supply | Available | None |
| Power Supply Voltage | 12/24 VDC: 2.0A | 12/24 VDC: 0.5A |
| Power Consumption | 25 W ( JLR-4350 ) | 7 W ( JLR-4350 ) |
| Interface | ||
| Ports | IEC 61162-1: ( Input ) 2 ports, ( output ) 5 ports IEC 61162-2: ( Input ) 1 port, ( output ) 1 port Buffer ( IEC 61162-1 ): ( Output ) 8 ports LAN ( IEC 61162-450 ): 2 ports Dry contact: ( Input ) 1 port, ( output ) 4 ports RS-232C: ( Input ) 1 port, ( output ) 1 port |
IEC 61162-1: ( Input / output ) 3 ports Dry contact: ( Input ) 1 port, ( output ) 1 port |
| NMEA 0183 Version | Ver 1.5/2.1/2.3/4.0 | |
| NMEA 0183 Input Sentence |
ACK, ACN, ALC, ALF, ALR, CUR, DBT, DPT, HBT, HDT, MTW, MWV, RTE, THS, VBW, VHW, VWR, VWT, WPL |
ACK, ACN, RTE, WPL |
| NMEA 0183 Output Sentence |
AAM, ACK, ACN, ALC, ALF, ALR, APB, BOD, BWC, BWR, CUR, DBT, DPT, DTM, GBS, GGA, GLL, GNS, GRS, GSA, GST, GSV, HBT, HDT, MTW, MWV, RMB, RMC, RTE, THS, VBW, VHW, VTG, VWR, VWT, WPL, XTE, ZDA, ZTG |
ACK, ACN, ALC, ALF, ALR, APB, BOD, BWC, BWR, DTM, GBS, GGA, GLL, GNS, GRS, GSA, GST, GSV, HBT, RMB, RMC, RTE, VTG, WPL, XTE, ZDA, ZTG |
| Environment | ||
| Operating Temperature |
GPS Sensor: -25 ℃ to +55 ℃ |
GPS Sensor: -25 ℃ to +55 ℃ |
| Storage Temperature |
GPS Sensor: -40 ℃ to +70 ℃ |
GPS Sensor: -40 ℃ to +70 ℃ |
| Waterproofing |
GPS Sensor: IP56 |
GPS Sensor: IP56 |
