Intrinsically safe handled
-
Dust-tight, waterproof design
-
Built-in Continuous Tone-Coded Squelch System (CTCSS)
-
Ergonomic design
-
Long lasting Lithium-ion battery

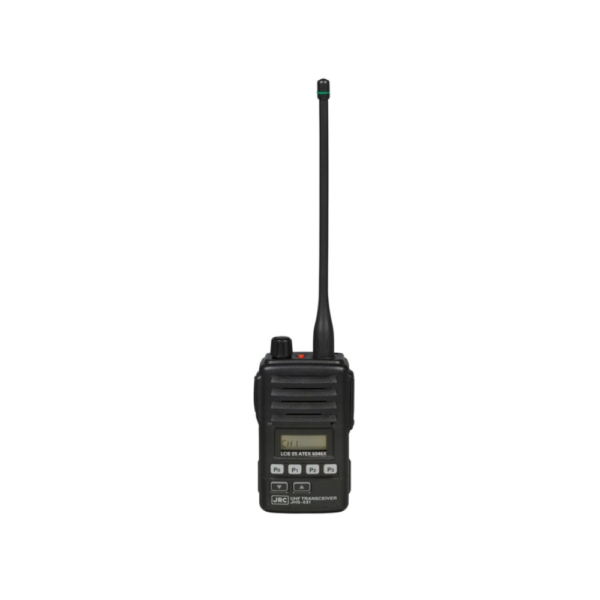

The JHS-431 is a 2-watt UHF intrinsically safe transceiver designed for on-board communication during ship operations, loading/unloading, and mooring. Its intrinsically safe design meets ATEX Directive 94/9/EC, making it suitable for use on Tankers, LPG carriers, LNG carriers, and LO carriers when transporting flammable or hazardous materials
 |
Flexibility
Standard Components
| Item | Model | Q’ty | Note |
| Transceiver | JHS-431 | 1 | |
| Antenna | FA-S27U | 1 | Whip Antenna |
| Battery Pack | BP-227AXD | 1 | 7.4V, 1850mAh (Lithium-Ion battery) |
| Carrying strap | MB-80 | 1 | |
| Belt clip | MB-79 | 1 | |
| Instruction manual | 7ZPJD0566 | 1 | |
| Instruction manual | A-6955H-1EU | 1 | |
| Inspection data | 1 | A6 size (For reference) |
Optional Components
| Item | Model | Remarks |
| External speaker/microphone | HM-138 | Waterproof type |
| Spare battery pack | BP-227AXD | 7.4V, 1850mAh (Lithium-Ion battery) |
| Spare antenna | FA-S27U | Whip antenna |
| Carrying case | MPXP33443A | Genuine leather |
| Battery charger | NZB-139 |
Desktop mount type (100-240V AC, 50/60Hz, 30VA) |
| Ledge for 6 battery charges | NZB-141 |
Wall mount type (100-240V AC, 50/60Hz, 100VA) |
| Rack for 6 battery charges | NZB-142 |
Desktop mount type (100-240V AC, 50/60Hz, 30VA) |
| Antenna | NAU-6 |
For non-powered antenna system (for both indoor and outdoor use, with N-type connector) |
| Antenna | NAU-3C |
For non-powered antenna system (for indoor use, with an BNC-type connector) |
| Antenna | FB-400N |
For non-powered antenna system (for indoor use, with N-type connector) |
| Antenna fixing plate | MPJC00683B | |
| Connector for coaxial cable | N-P-10U | For cable connection |
| Connector for coaxial cable | N-TA-JJJ | For cable connection |
| Connector for coaxial cable | N-A-JJ | For cable connection |
| Cable divider | D2-4501 | For cable dividing |
| Cable divider | D3-4501 | For cable dividing |
For more product details, please contact us via the tab below.
