Features

Flexible operation and recording system

The received fax broadcasts are recorded on thermal recording paper, using a thermal head with less moving parts. JRC integrated an automatic frequency selection, allowing for optimized receiving. The JAX-9B can receive in four different modes.

Automatic recording

All operations can be remotely controlled to automatically start up, set parameters, receiving images, feed paper, and stop by remote signals from the broadcasting stations. Only halftone recording is manually controlled.

Manual recording

You can manually set the index of co-operation (IOC), scanning speed, and the halftone recording. The JAX-9B automatically records and stops in this mode.

Forced recording

This is an extensive function of the automatic recording mode. The JAX-9B can manually record while neither in automatic or manual recording mode, also while broadcasting is in progress. Phasing is done manually. It also adopts to an unique system to terminate phase matching instantaneously.

Timer program recording

The period of the start and stop modes, station frequencies, and half-tone on/off are easy programmable. Whilst combined with the fully automatic mode, and unattended, error-free operation is made possible.

—

Synthesized receiver

The built-in synthesis receiver is capable of setting any receiving frequency from the ten-key pad, and is able to preset up to 90 spot frequencies in the memory. This feature is very effective when receiving any new broadcast frequency and changing the station frequency.

First half-tine recording

Pictures of clouds can be recorded in 16 gradation levels. The digital method ensures high resolution recording, using a proprietary system that finely reproduces maps and altitude and longitude grids with very fine and accurate lines.

Printout of frequencies and program lists

Up to 90 channels of memory frequencies and up to 15 channels of program lists can be printed out on the recording paper. This function is especially useful for setting programming and checking the stored frequencies.

—

Enhanced interfacing

All received faxes can be displayed on your own PC, allowing you to view (and save) the image before seeing the actual recorded image. This function allows you to quickly view the image digitally, which greatly facilitates the need for immediate decisions. On top, the JAX-9B can also be configured for remote maintenance. JRC has developed a unique function that is capable for remotely monitoring and analysing for any faults that may occur in the system, allowing for prompt action and service.

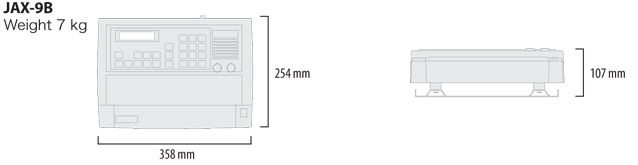

Compact and lightweight design

The JAX-9B weather fax is remarkably compact and lightweight, allowing for a more flexible installation approach in confined spaces.

—

Weatherfax

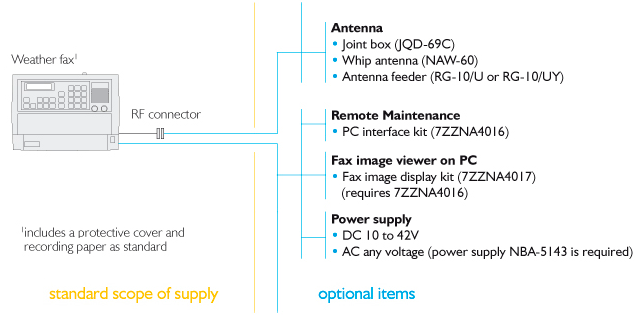

Configuration
