SATCOM / IRIDIUM

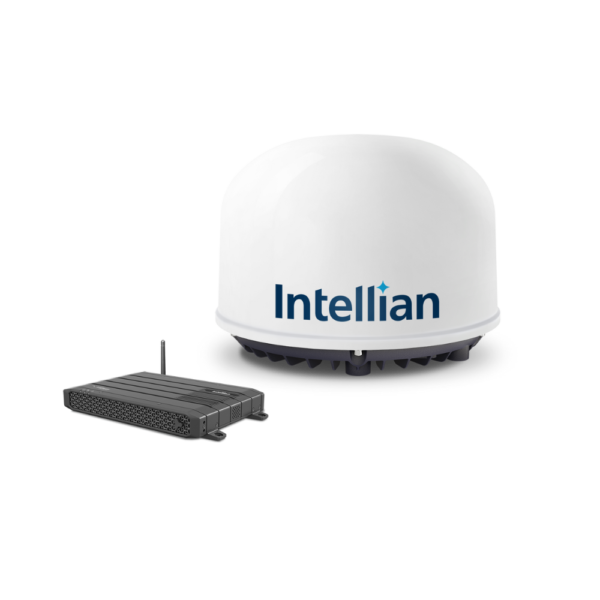

Iridium Certus C700

  • Most powerful Iridium Certus terminal for maritime use

  • Connects to Iridium’s 66 LEO satellites for pole-to-pole communication

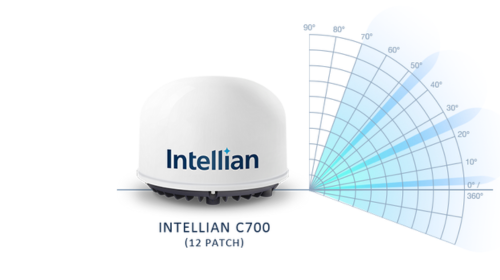

  • 12 patch phased-array antenna for high performance, especially at low elevation angles

  • IP data speeds up to 704 Kbps

  • Uplink speeds up to 352 Kbps with H2 class high power amplifier

  • Scalable and reliable, providing advanced performance on the Iridium Certus network



Description



The most technically advanced Iridium Certus maritime terminal

The advanced performance of the C700 provides customers across all markets the flexibility to deploy the C700 as the primary communication antenna or as a companion to a VSAT system for seamless redundancy. The Intellian C700 is the first Iridium Certus terminal to be approved for the Japanese maritime market.

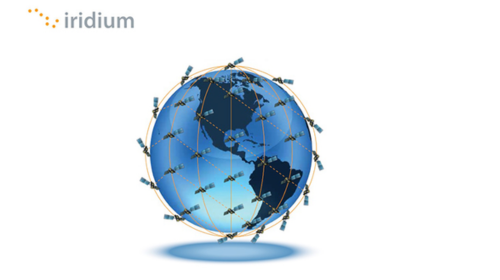

True global coverage

  • Iridium LEO network of 66 satellites

  • Pole to Pole coverage

  • Low-earth Orbit, stronger signals

  • Low latency, high speed and always-on

  • GMDSS Ready*



Best in class performance

  • 12-element patch phased-antenna for max coverage

  • High power H2 amplifier, 352 Kbps uplink

  • Excellent performance during ship motion and low elevation angle

  • VSAT companion for out-of-band management, multi-user support

  • Optimal satellite/beam handover for seamless connectivity

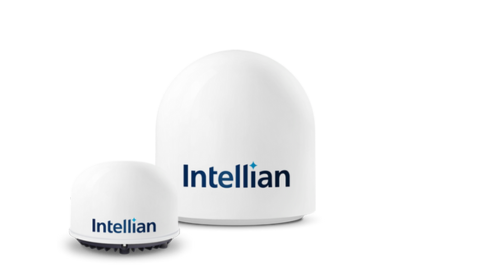

The perfect VSAT companion

  • VSAT + C700 Bundled packages available

  • L-band element of an intelligent hybrid network

  • Data communication throughput – 352 Kbps Up, 704 Kbps Down

  • Out-Of-Band management

  • Powerful API enables full integration with 3rd party Smart Boxes

  • 19″ Rack mount version available

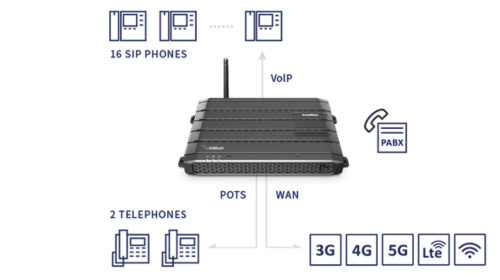

All-in-one terminal

  • Analog Terminal Adapter (ATA) for analog phones and onboard PABX

  • Power-over-Ethernet (PoE) for IP devices, SIP phones, and access points

  • Private automatic branch exchange (PABX) system

  • Router supporting multiple users of the terminal

  • Firewall for cyber secure connections

  • WAN for least-cost routing of data traffic via 3G/4G/5G

  • Built-in Wi-Fi

  • GMDSS Ready*

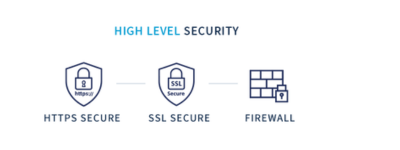

Enhanced cyber security

  • Built-in-Firewall

  • HTTPS, TLS certificate

  • Data Encryption



Advanced voice solution

  • 3 HD Quality voice lines

  • Direct connect up to 4 SIP Phones

  • Up to 2 analog telephones

  • Soft PABX for up to 16 SIP Phones



*For non-SOLAS market when paired with Intellian GMDSS console. GMDSS console and SOLAS-compliant terminals are under development and will be available in the future.
