Intrinsically Safe, Commercial, Grande Marine Portables
-
Analogue & DMR Modes
-
16 Channels, 1 Zone
-
IP68 Submersible (2m, 4 hours)
-
Compliant to MILSTD construction 810C/D/E/F
-
Salt Water anti-corrosion chassis coating
-
3 watts loudest & best clarity audio – in class
- Programmable buttons
-
Gold plated accessory connector
- Locking accessory connector
-
Accessory audio tailoring optimizes audio for each accessory
OVERVIEW

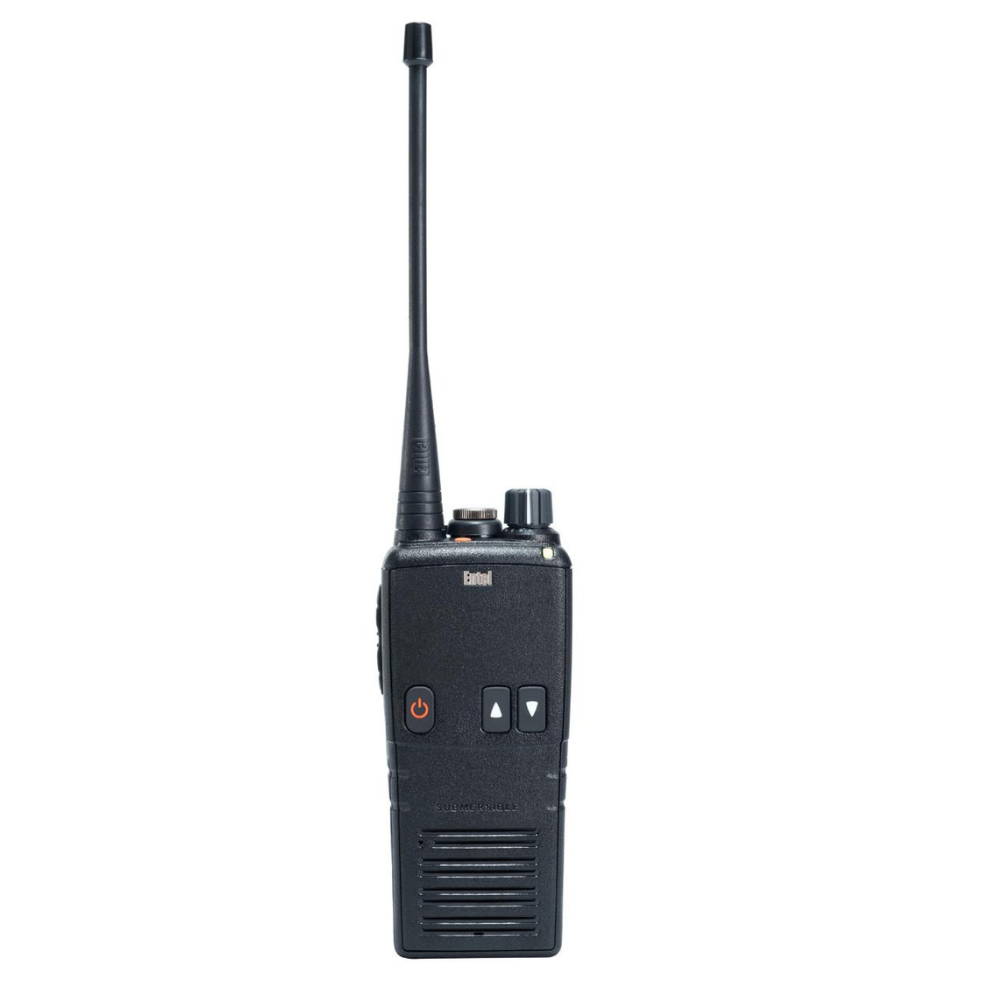

The HT782 boasts a robust, ergonomic design for tough marine conditions, fitting comfortably in hand. Its exceptionally loud audio ensures clear crew communications, and its IP68 rating means it’s submersible up to 2 meters for 4 hours. A wide range of audio accessories, including remote microphones and ear defender headsets, are available. Refer to the product brochure for more details.
GENERAL
Entry & Sophisticated Models – HT700 Series 2.0 offers ‘Entry’ models with Push-To-Talk communications, while ‘Advanced’ models add features like Individual & Group Calling, Lone-Worker protection, and Text Messaging.
Environmental protection – IP68 (2 Meters for 4 hours) – The HT700 Series 2.0 is IP68-rated, making it fully dustproof and submersible up to 2 meters for 4 hours.
MILSTD 810C/D/E/F – Built to MIL-STD 810 standards, these radios withstand shock, vibration, and exposure to dust and moisture, ensuring long-lasting durability.
2200mAh Li-ion battery – The Li-ion battery technology eliminates memory effect, allowing full recharges without discharge, providing consistent power every time.
Flash upgradeable to add future features – Flash Upgrade technology enables future feature enhancements, allowing easy updates through your Dealer.
Robust accessory socket – The accessory socket is designed for high durability, with a protective securing bolt to handle impacts and misuse.
Channels – Non-display models have 16 programmable channels, while display models offer up to 255 channels.
CONVENIENCE
Keylock – Prevents accidental activation by allowing manual or automatic locking of keys and controls.
VOX hands free (with audio accessory) – The VOX feature lets users communicate hands-free, automatically transmitting when they speak.
Scan/priority scan – Scans channels for availability, with priority scan checking a selected channel more frequently.
Programmable channel monitor button – Temporarily disables channel protection to monitor all signals on your channel.
Talkaround – Enables direct communication with other radios outside repeater range.
Individual & Group Calling (advanced models only) – Advanced models support Individual, Group, and All Calls, with speed dial options
SECURITY
Programmable scrambler (voice inversion) – Encrypts voice transmissions to prevent casual eavesdropping.
SAFETY
Local Personal Attack Alarm – Activates a loud siren on the radio to call for local assistance during an emergency.
Lone-Worker & Main-Down Alarms (advanced models only) – Lone-Worker and optional Man-Down alarms provide safety monitoring. If the user is unresponsive, the alarm sounds and notifies others in the area.
SPECIFICATIONS
GENERAL | |
Frequency Range | 450-470MHz |
Channels* | Non LCD 16 Channels, LCD 255 channels* |
Region* | EU* (ONLY HT782 is applicable to Non EU) |
Channel Spacing | 12.5 KHz / 25 KHz |
Communication Method | Simplex / semi duplex |
Antenna Impedance | 50 ohms |
Antenna | Whip / stubby |
Battery Type | 2200 mAh Lithium-ion battery pack |
Operating Voltage | 7.6V |
Weight | 277g with battery and aerial |
Overall Dimensions (HxWxD) | 130mm x 59.5mm x 37mm |
Frequency Stability | ±1.5ppm |
Current Drain (nominal) | 40mA |
Duty cycle (5/5/90) | 17.5 hours |
Microphone | Internal condenser microphone |
Operating Temperature | -20° to +55°C |
Construction | MIL-STD 810C/D/E/F |
IP Rating | IP68 (2 meters depth for 4 hours) |
TRANSMITTER | |
Output Power | 2W (high) – 1W (low) (ERP) |
Modulation Limiting | ±5.0KHz / ±2.5KHz |
FH Hum and Noise | >-45dB / >-40dB |
Unwanted Emissions | >0.25uW |
Adjacent Channel Power | > 70dBc / >60dBc |
Audio Response (FM) | 300Hz to 3KHz -6dB /Octave |
Audio Distortion | <5% |
FM Modulation | 16K0F3E / 8K0F3E |
RECEIVER | |
Analogue Sensitivity | -116dBm (0.2uV) for 12dB SINAD |
Intermodulation Response | >68dB |
Adjacent Channel Selectivity | >70dB / >60dB |
Spurious Rejection | >70dB |
Rated Audio Power | 0.5 Watts |
Audio distortion | <5% |
Hum and Noise | >-45dB / >-40dB |
Audio Response | 300Hz to 3KHz -6dB /Octave |
Conducted Spurious Emissions | <2nW from 30MHz to 2GHz |
REGION* | ENTRY | LCD UHF* | ||
NOT INTRINSICALLY SAFE | MARINE UHF | EU | HT782M | HT783M |
MARINE UHF | Non EU | HT782 | HT783 |
