Public Address General Emergency Alarm System is designed for general announcing with advanced technology and complies with IMO regulation III/6.5 & Res. MSC.47(66)/Circ.808 performance standards. This system is also specially made to keep good performance under the harsh environment of vessels at sea and especially offshore marine plant.

For this system, paging function through auto telephone exchanger and combined talk-back function are available. Interfacing with external general emergency alarm, fire alarm, signal column light, air horn, VDR and fail alarm monitoring system are also available.

Accessories for Public Address System can be found in the Product Brochure below.

Type Approval by DNV GL and RINA

—

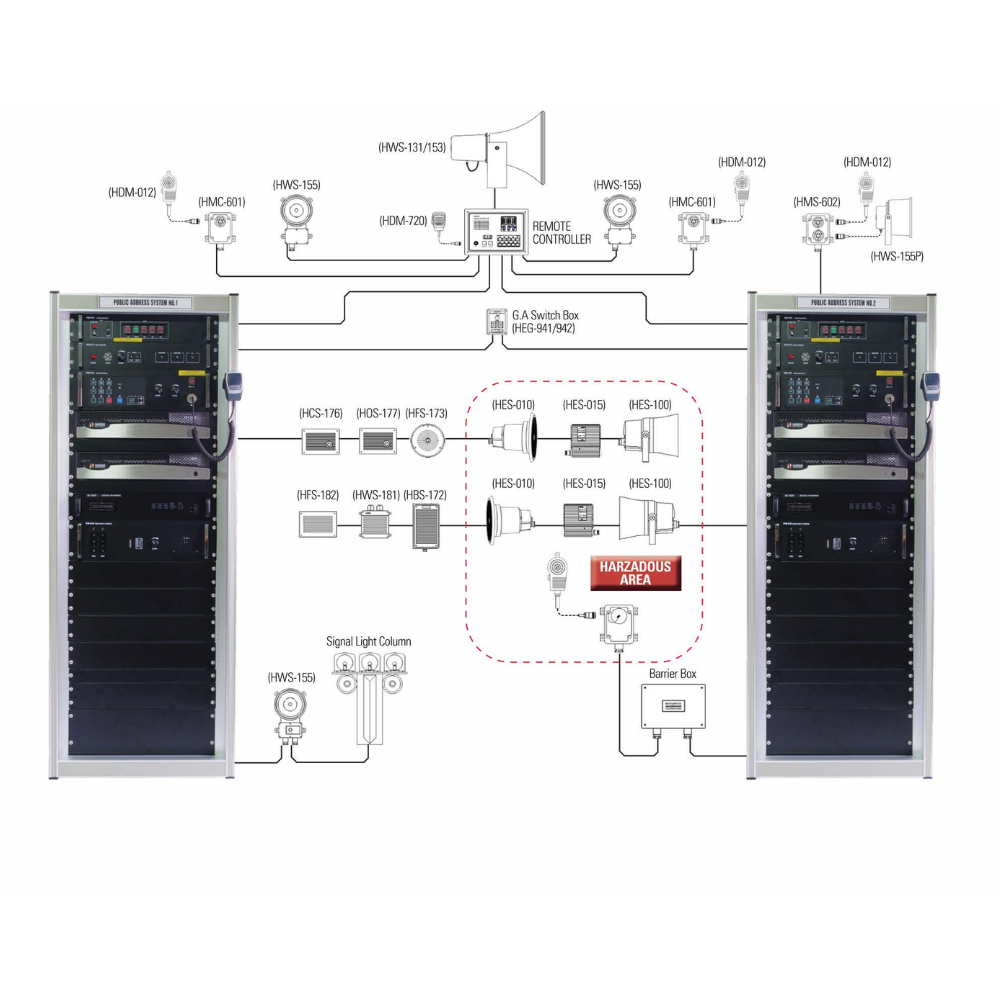

SYSTEM DIAGRAM

SYSTEM SPECIFICATION

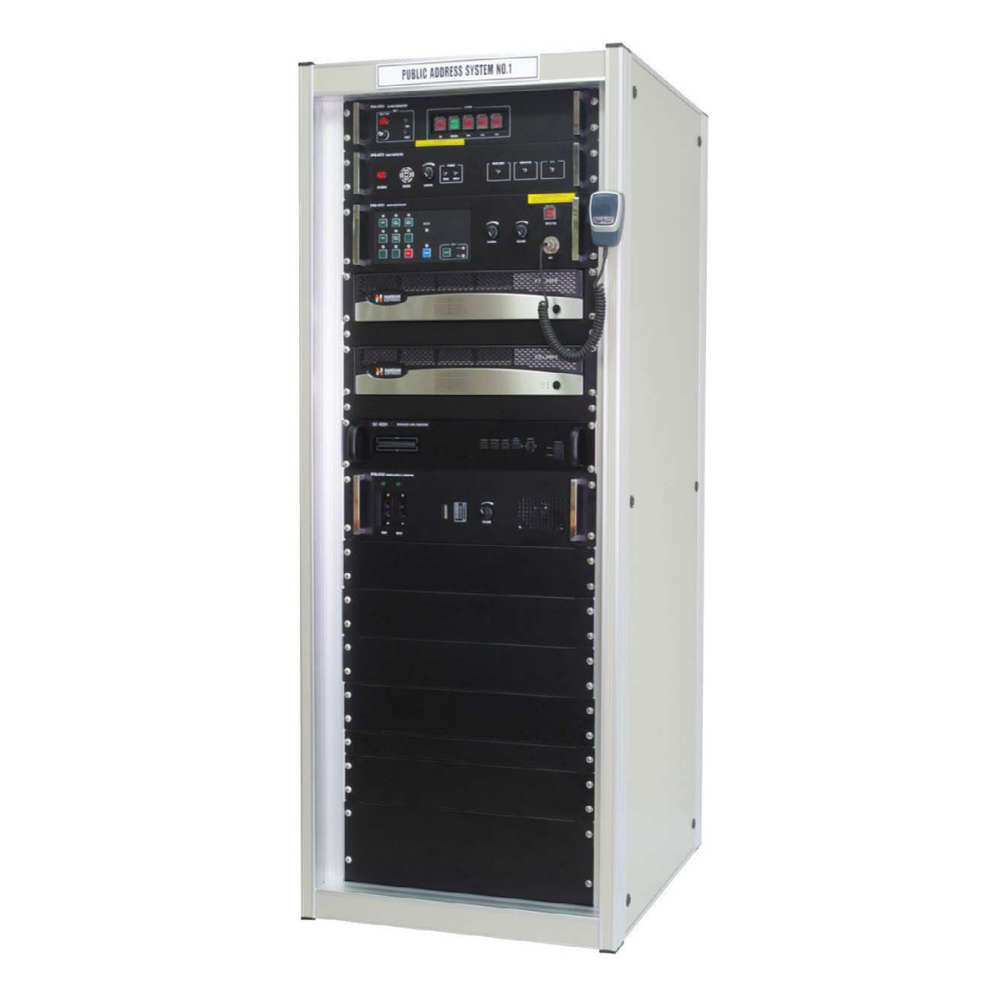

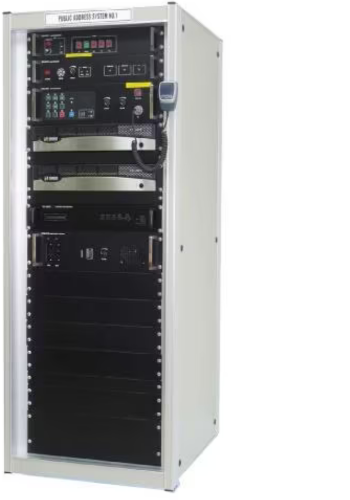

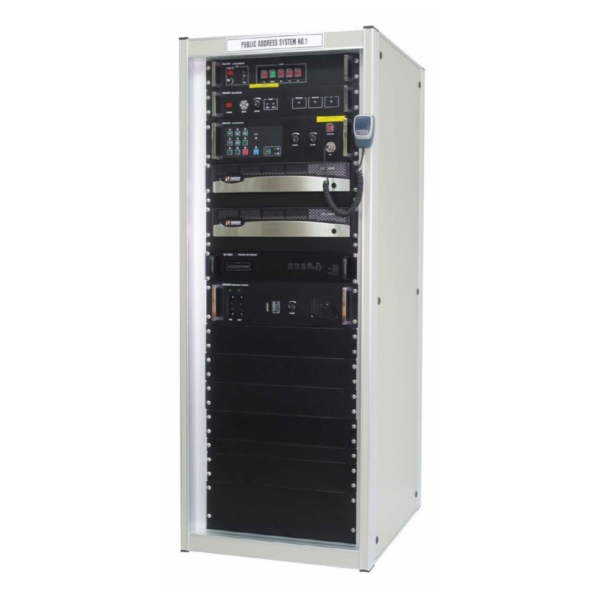

HPA-9800 Main Unit

• Dual type (A-B) system • Output: 1,500W-9,000W • Remote controller: Standard 6 ea (Extension: 15ea) • Line checker • Alarm generator – General emergency alarm – Fire alarm – CO₂ smoke alarm – Gas alarm – etc. • GA muting • Announcing priority: 18 class • Auto-telephone paging call (all, group-1, group-2) • Automatic main/em’cy power changeover • Fault detector (system check) • Operating temperature & humidity: -5°C ~ +60°C, 95% • Frequency characteristic: 50Hz~15kHz • Distortion: less than 0.5% • S/N Ratio: more than 70dB • Power source: AC110/220V, 50/60Hz • Dimension (W x D x H mm): 600 x 750 x 1565

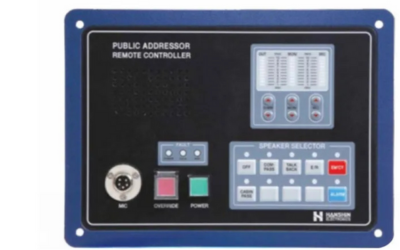

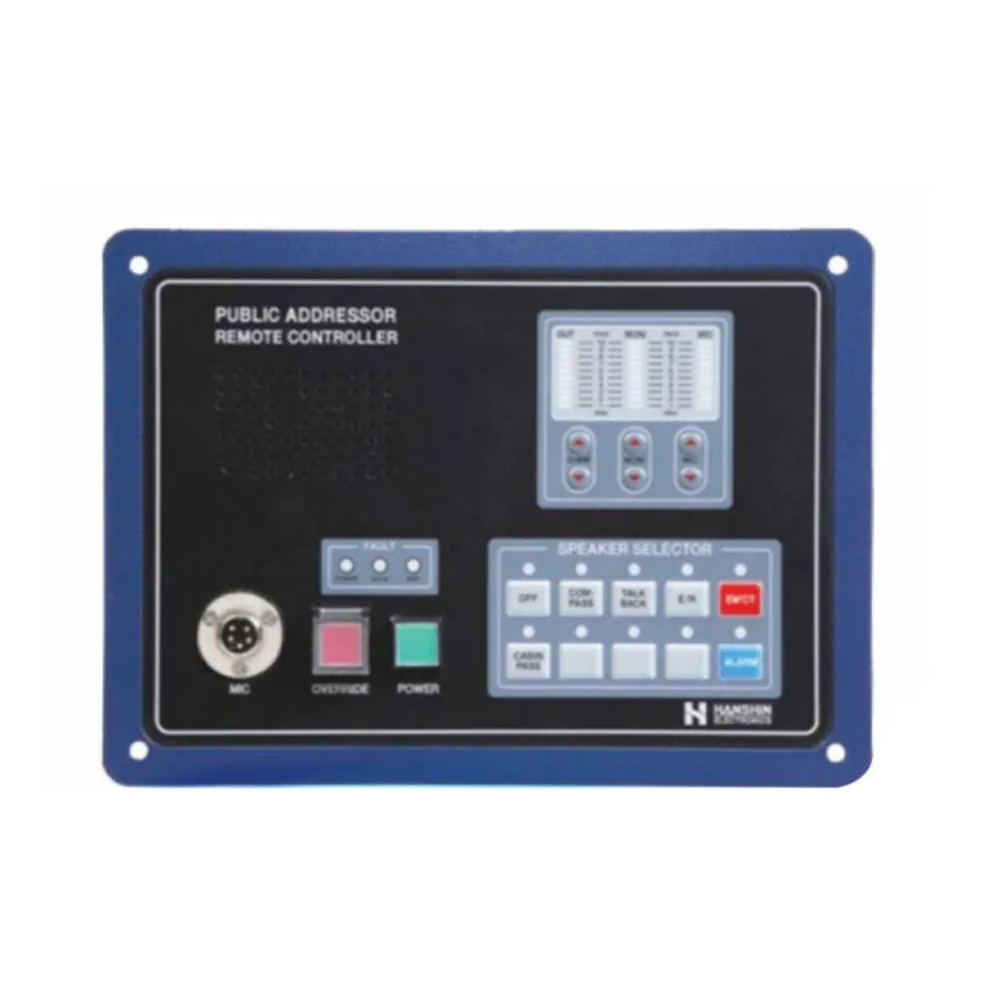

HBC-210 Remote  Controller
• Call signal: 800Hz • Microphone with volume • Speaker selector: 9 group • Dimmer: Speaker selector lamp brightness • Monitor speaker with volume • Flush or Wall mounting type • Dimension (W x D x H mm): 275 x 110 x 200
