The Public Address with Talkback System is engineered for reliable, general announcing using advanced technology, fully compliant with IMO regulation III/6.5 and Res. MSC.47(66) performance standards. Built to withstand the harsh conditions of marine environments, this system includes a paging function via auto telephone exchanger and a talk-back feature for effective communication.

It can interface seamlessly with external systems such as general emergency alarms, fire alarms, air horns, and signal light columns. In 2003, the system received a patent from the Korean Intellectual Property Office for its uninterrupted dual public address capability.

Accessories for Public Address System can be found in the Product Brochure below.

Type Approval by DNV GL, RINA, and CCS

—

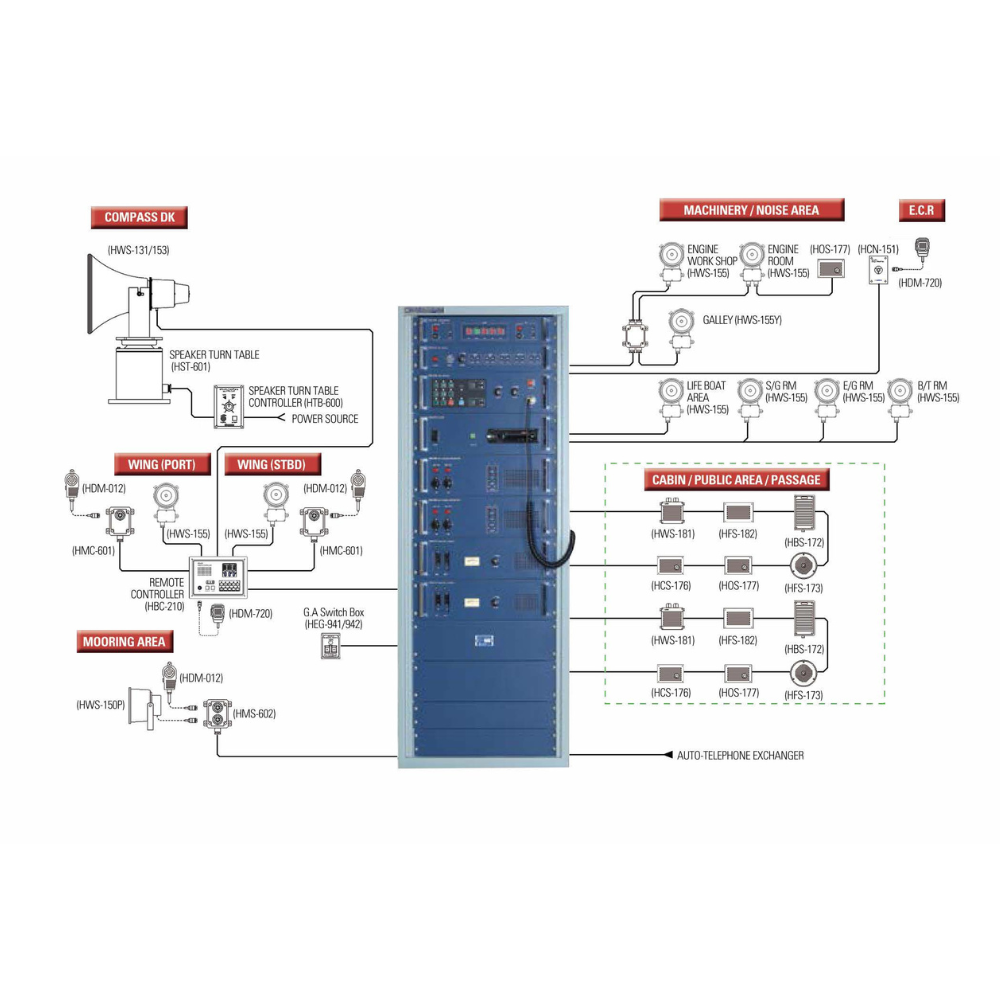

SYSTEM DIAGRAM

SYSTEM SPECIFICATION

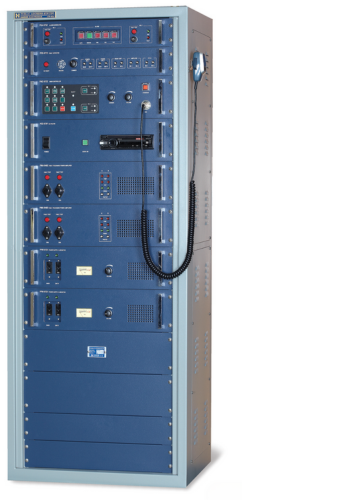

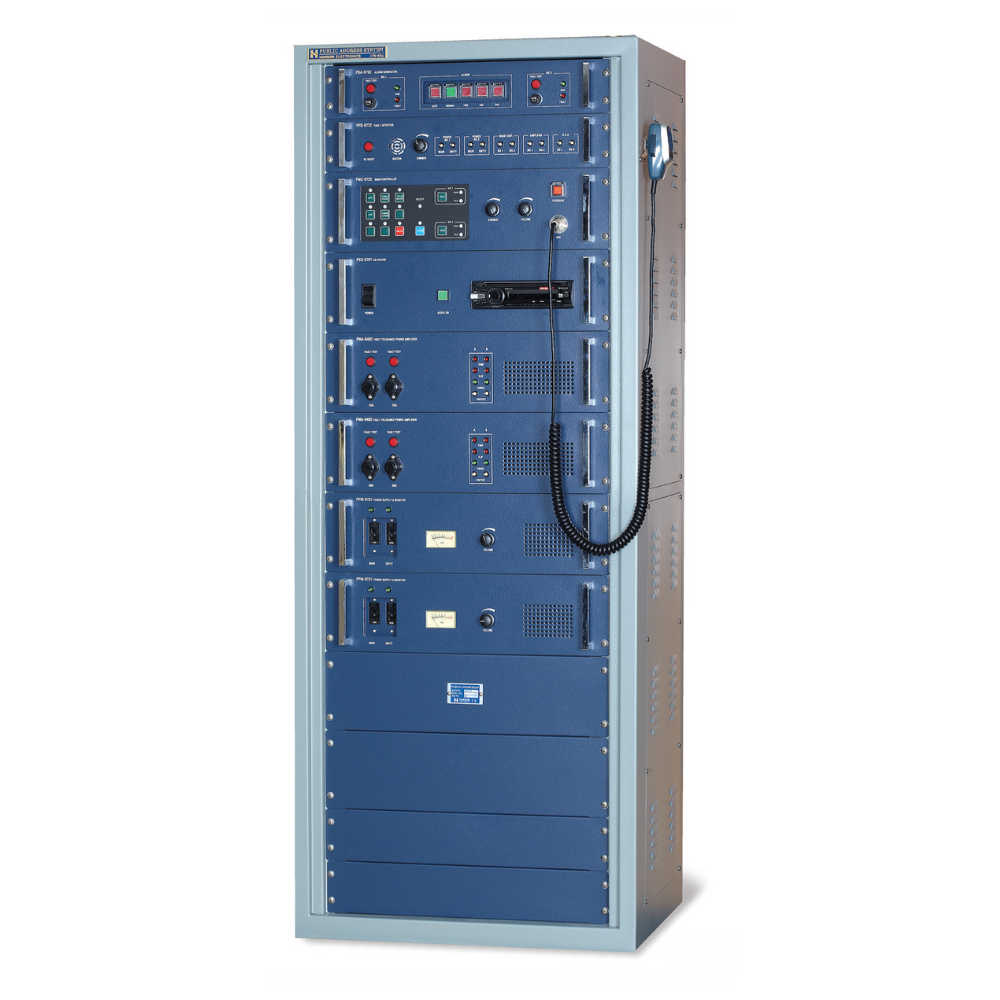

HPA-9700 Main Unit

• Single/Dual system • Single/Dual rack type • Output: 200W~2,000W • Remote controller: Standard 6ea (Extension: 36ea) • Master & Slave changeover/Two amp. run type • Alarm generator: option – General emergency alarm – Fire alarm – CO₂ smoke alarm – Gas alarm – etc. • GA muting • Announcing priority: 12 class • Auto-telephone paging call (all, group1, group2) • Automatic main/em’cy power changeover • Fault detector (system check) • Operating temperature & humidity: -5°C ~ +55°C, 95% • Frequency characteristic: 120~12000Hz within±6dB • Distortion: less than 0.5% • S/N Ratio: more than 55dB • Power source: AC110/220V, 50/60Hz & DC24V • Dimension (W x D x H mm): 585 x 450 x 1500 (single rack/800W dual system)

HBC-210 Remote  Controller
• Call signal: 800Hz • Microphone with volume • Speaker selector: 9 group • Dimmer: Speaker selector lamp brightness • Monitor speaker with volume • Flush or Wall mounting type • Dimension (W x D x H mm): 275 x 110 x 200
