The Public Address with Talkback System is designed for general announcements, utilizing advanced technology that meets IMO regulation III/6.5 and MSC.47(66) performance standards. Engineered to perform reliably in the harsh marine environment, this system ensures clear communication at sea. It includes a paging function through an auto telephone exchanger, along with a combined talkback feature for effective crew coordination.

Accessories for Public Address System can be found in the Product Brochure below.

CE mark(EMC) by DNV GL

—

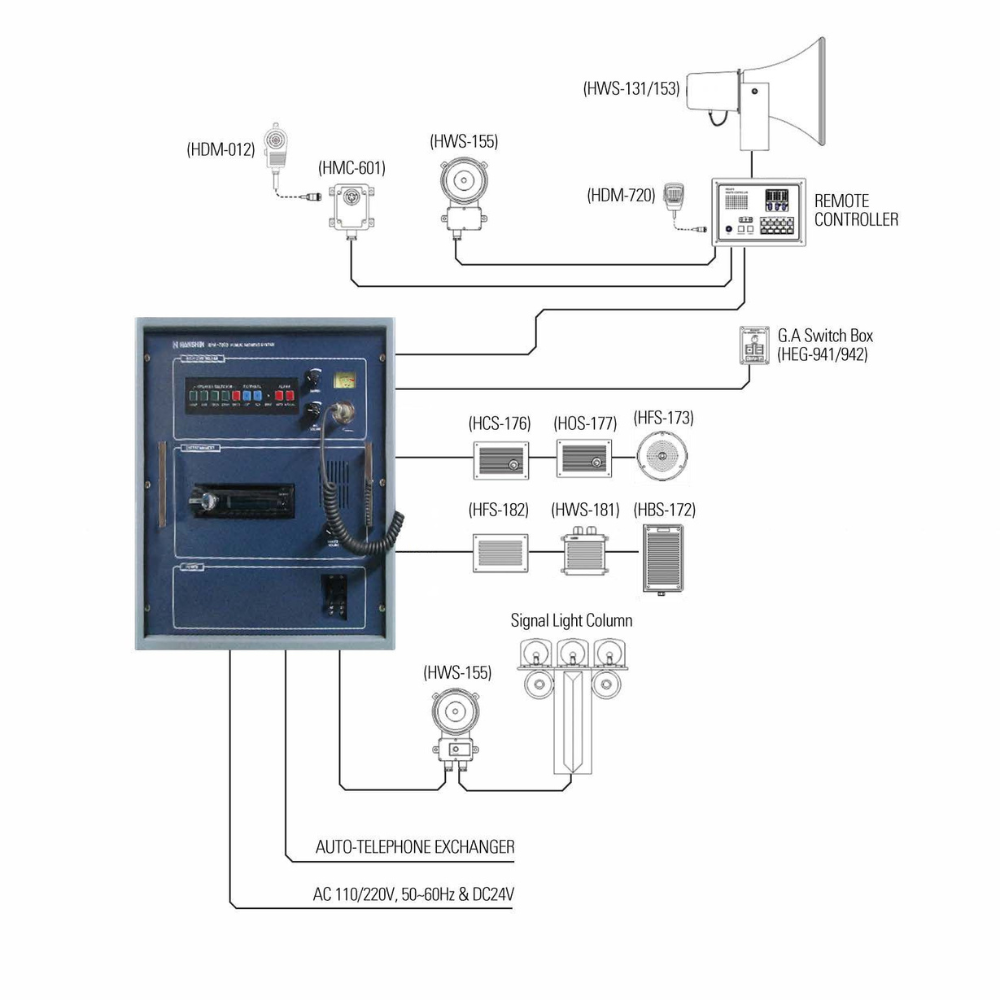

SYSTEM DIAGRAM

SYSTEM SPECIFICATION

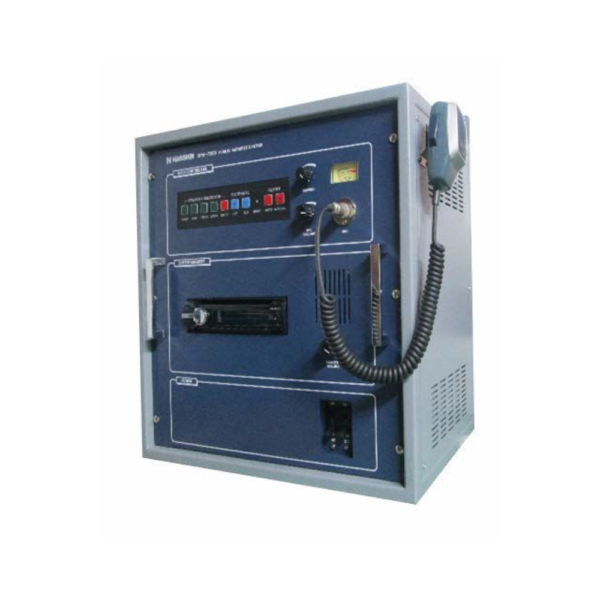

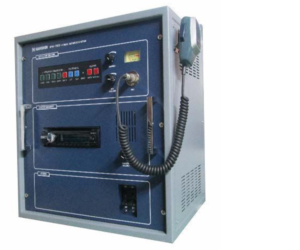

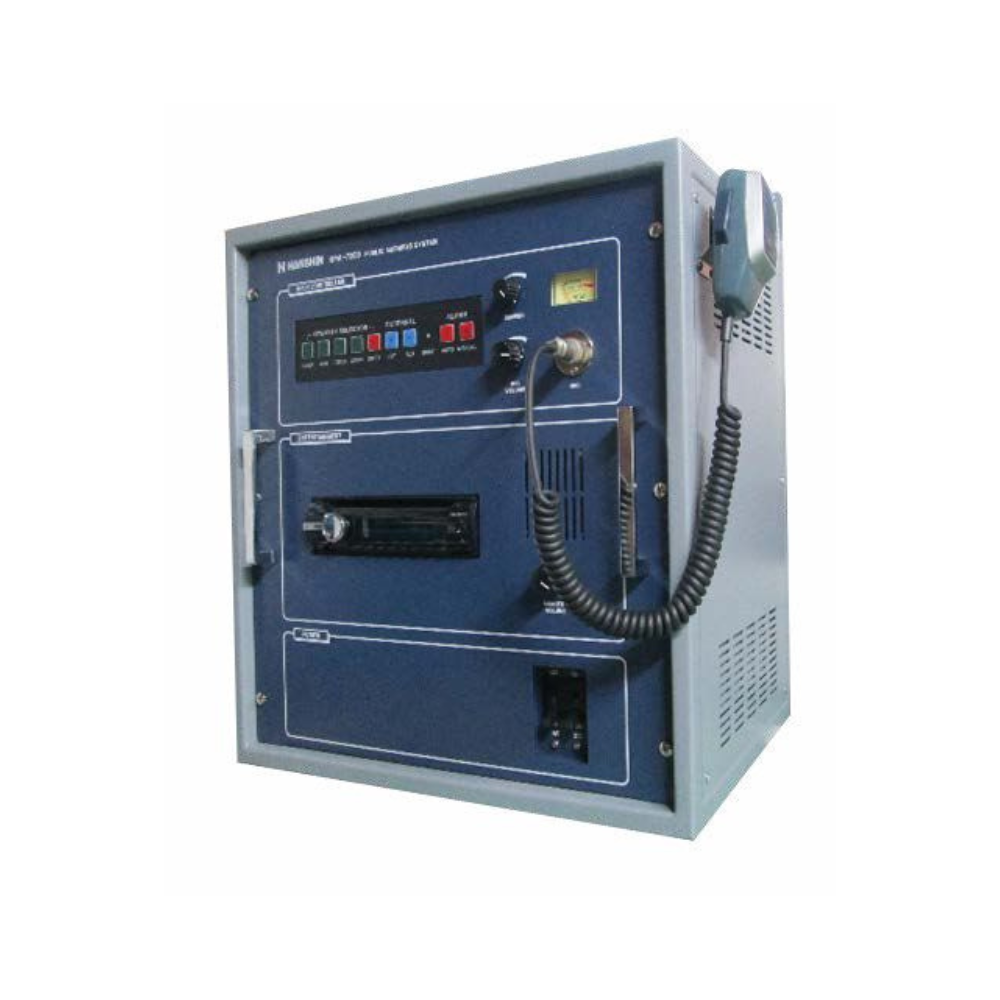

	HPA-7300 Main Unit
	• Single type system • Output: 200W,400W • Remote controller: option (max: 2ea) • Announcing priority: 9 class • Auto-telephone paging call (all, group1, group2) • Automatic main/em’cy power changeover • Fault detector (system check) • Operating temperature & humidity: -5°C ~ +55°C, 95% • Power source: AC110/220V, 50/60Hz & DC24V • Dimension (W x D x H mm): 430 x 300 x 450

HBC-310 Remote Controller
• Call signal: 800Hz • Microphone with volume • Speaker selector: 5 group • Dimmer: Speaker selector lamp brightness • Monitor speaker with volume • Flush or Wall mounting type • Dimension (W x D x H mm): 275 x 110 x 200
